System 3 XT400 Tires

Michelle Baird | March 24, 2021

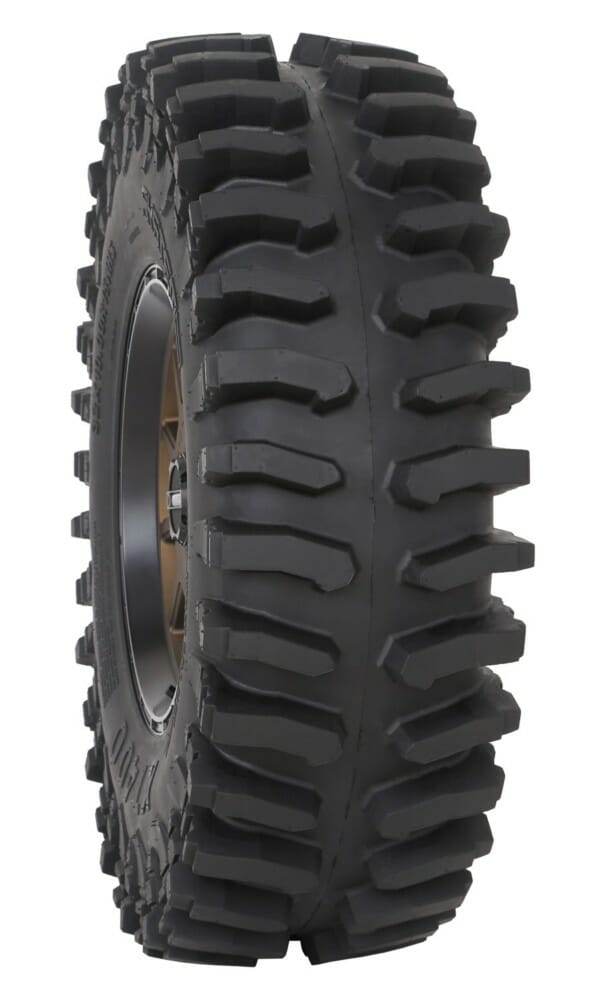

The new XT400 tire from System 3 combines the radial carcass of the XTR370 tire with the mud-ready tread of the XM line to create an innovative 10-inch wide smooth-running mud-trail hybrid.

It has aggressive shoulder lugs to pull through deep ruts and deep rim guard that protect the wheel lips in addition to reduce the chance of a pinch flat.

Here is more from System 3’s press release:

Yorba Linda, CA (March 23, 2021) – By combining two high-performance tire designs, System 3 Off-Road has created the new XT400, a mud-trail hybrid tire that delivers extreme trail traction. The XT400 combines the radial carcass of the rugged XTR370 tire with the mud-ready tread design of the XM tire line.

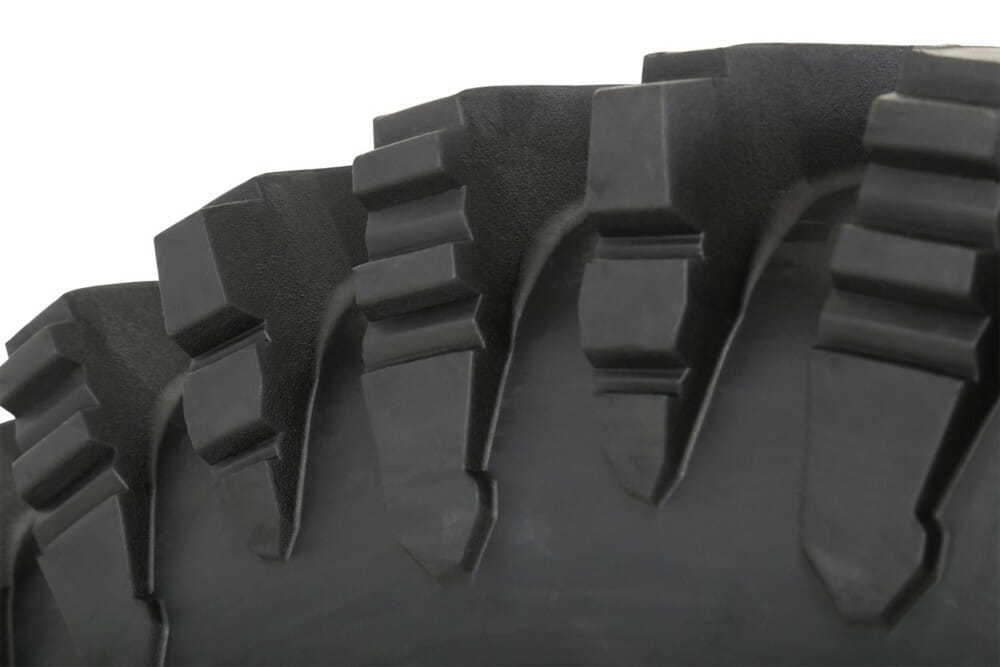

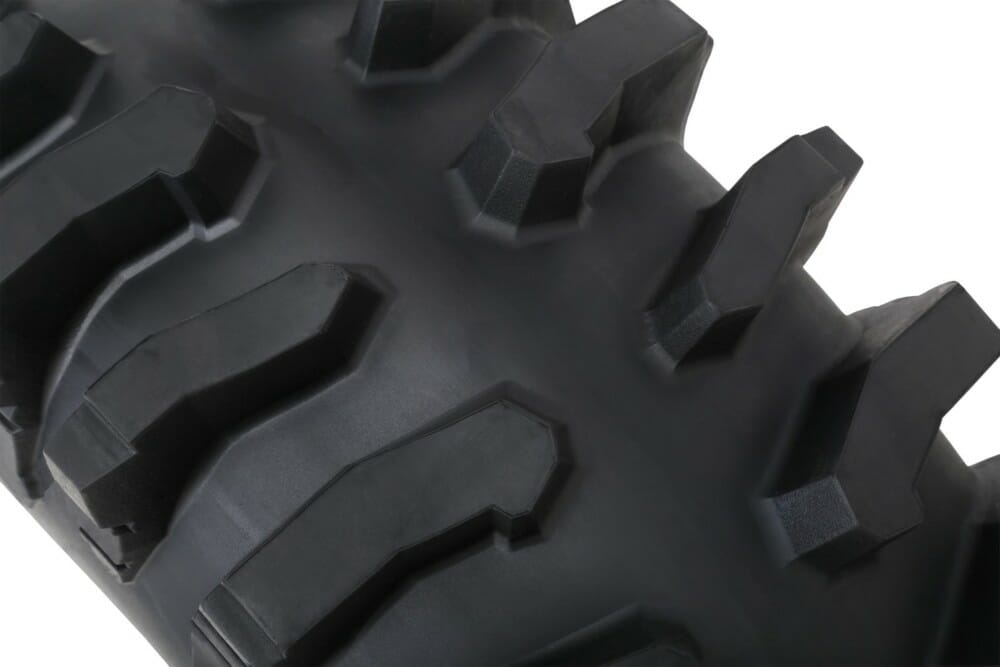

The new XT400 tire features a 10-ply rated radial carcass and 10-inch wide footprint, with multi-stage lugs up to 2.0 inches deep. The tire’s aggressive shoulder setup gives drivers powerful traction and control through deep ruts and loose terrain. And a deep rim guard protects wheel lips and helps avoid pinch flats.

Video | 2021 System 3 Off-Road XT400 Tires

The XT400 is available for both ATVs and UTVs, in sizes from 27-inch for 14-inch wheels up to 40-inch tires for 24-inch wheels. Suggested retail pricing for XT400 tires ranges from $221 to $383.

XT400 Extreme Trail Specifications

PLY RATING	DIAMETER	TREAD DEPTH	MAX PSI	MAX LOAD	WEIGHT	PART #

10 ply rated	27.0 in.	1.25 – 1.5 in.	18 psi	942 lbs	41.9 lbs	522658
10 ply rated	28.1 in.	1.25 – 1.5 in.	18 psi	1002 lbs	44.8 lbs	522660
10 ply rated	30.1 in.	1.25 – 1.5 in.	18 psi	1134 lbs	47.6 lbs	522661
10 ply rated	32.1 in.	1.25 – 1.5 in.	18 psi	1293 lbs	51.1 lbs	522662
10 ply rated	32.0 in.	1.25 – 1.5 in.	18 psi	1260 lbs	51.8 lbs	522663
10 ply rated	33.1 in.	1.25 – 1.5 in.	18 psi	1350 lbs	52.9 lbs	522664
10 ply rated	33.0 in.	1.5 – 2.0 in.	18 psi	1152 lbs	51.1 lbs	522665
10 ply rated	35.0 in.	1.5 – 2.0 in.	18 psi	1299 lbs	55.8 lbs	522666
10 ply rated	37.2 in.	1.5 – 2.0 in.	18 psi	1473 lbs	61.3 lbs	522667
10 ply rated	40.1 in.	1.5 – 2.0 in.	18 psi	1581 lbs	72.3 lbs	522668
